Triangulated Four-Link Suspension Kit Featuring 7/8-Inch Chromoly Heim Joints

Description

Upgrade the suspension on your Rock Crawler or Trail Rig for maximum control and power translation our 4 link suspension DIY kit with 7/8″ Chromoly Heims. Like all of our 4 link suspension kits, the DIY kit with 7/8″chromoly heims includes all the heavy duty parts you need to install a premium suspension system.

Install Tips:This video is not an exact install, but it will help you understand how DIY link kits work.

Read our 4 Link Suspension Install Tips.

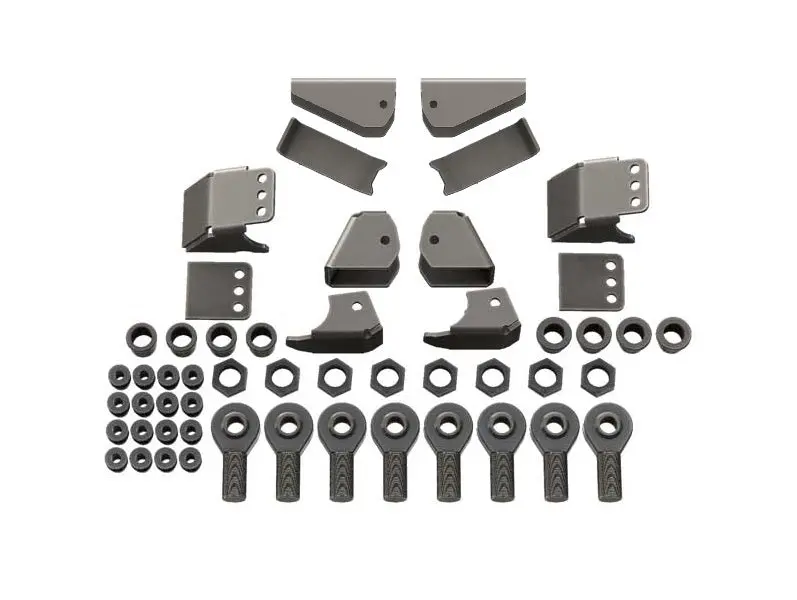

Including the following:

• 1 x Axle Link Mount Pair 0 Degrees
• 1 x Truss Link Mount Brackets
• 1 x Frame Link Mount
• 2 x Adjustable Inner Frame Link Mount 20 Degrees
• 4 x Heat Treated Chromoly 7/8″- 14 X 3/4″ Heim RH
• 4 x Heat Treated Chromoly 7/8″- 14 X 3/4″ Heim LH
• 16 x High Misalignment Spacers 3/4″ to 1/2″ Zink-Plated Steel
• 4 x 7/8″ – 14 Jam Nut RH
• 4 x 7/8″ – 14 Jam Nut LH
• 4 x Tube Insert (7/8″ – 14) 1 1/2″ ID Tube RH
• 4 x Tube Insert (7/8″ – 14) 1 1/2″ ID Tube LH

We offer several other 4 link suspension kits. Choose from the following:

• Enduro Joint Four Link Suspension DIY Kit
• Four Link Suspension DIY Kit 1 1/4″ Chromoly Heims
• Double Triangulated Four Link Suspension Kit 1 1/4″ Chromoly Heims
• Lower Triangulated Four Link Suspension Kit 1 1/4″ Chromoly Heims

Four Link Suspension DIY Kit Related Products

Barnes 4 Link suspension kits come with everything you need to get the job done right the first time. If you’re interested in building your own system using Barnes fabrication parts, check out our Shock Brackets, Tabs, and Towers, Coil Spring Bucket Parts, 4 link DOM kit, and the Enduro Joints, Heims and Hardware section.
