Description
Upgrade your front upper short control arm suspension to an adjustable Pro LCG Long Arm Suspension System with the TeraFlex TJ: Front Upper Pro LCG Long Arm & Bracket Upgrade Kit. Provides complete alignment adjustability and dependability for maximum performance on TJ Wrangler/Unlimited models with 3-5 Inch Lifts.
CAD-engineered TeraFlex TJ: (Pro) LCG (4-Link) Long Arm Frame Brackets and triangulated Rear Upper Pro LCG 4-Link Long Arm Axle Truss (Not Included) are designed for maximum strength. The 1/4 Inch-thick steel brackets are CNC laser cut and precision bent for accurate fitment.
Frame Brackets locate using the factory belly pan skid plate bolt holes then stitch welded. These are the same components found in our high-end Enduro LCG and/or Pro LCG Long Arm Suspension Systems.
Requires Lower LCG Long Arm & Bracket Upgrade Kit (TJ SWB: # 1447700) (LJ LWB: # 1447780). Combine this kit with the triangulated Rear Upper Pro LCG 4-Link Long Arm & Bracket Upgrade Kit (TJ SWB: # 1444870) (LJ LWB: # 1444880) to step up to our full Pro LCG Long Arm Suspension System.
- Can be added to an existing suspension lift.

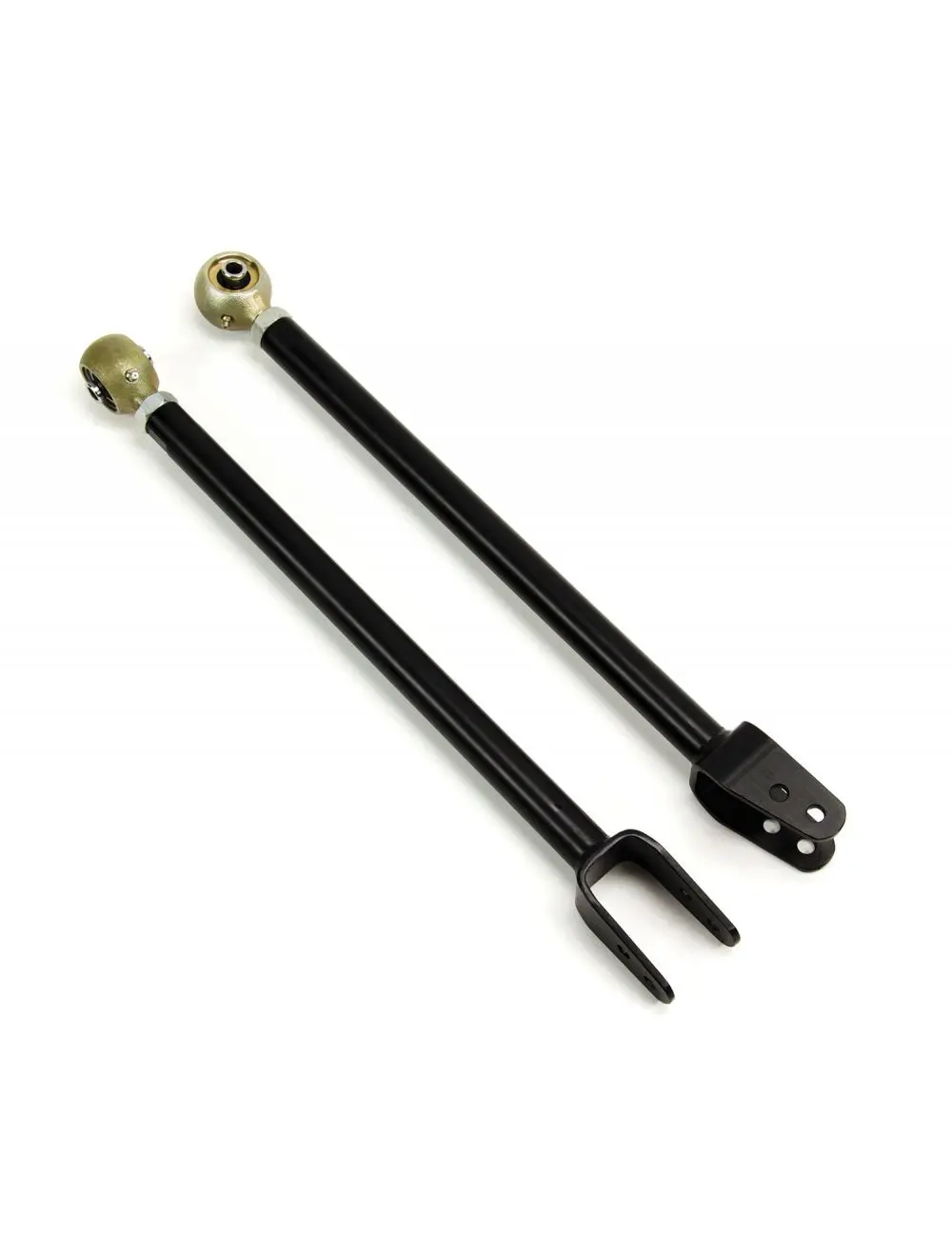

- Includes: Pro LCG Long Arm Pair – Front Upper (# 1613801):
- Arm – Front Upper (Left or Right) (# 1649839) x 2
Pro LCG Long Arm Frame Brackets:
- Bracket – Front Upper Left (# 9791)
- Bracket – Front Upper Right (# 9792)
- Exhaust Pipe Extension
- All necessary hardware
Fitment Vehicle(s):
- TJ Wrangler (short wheelbase)
- LJ Wrangler Unlimited (long wheelbase)
Specs:
- Lift Height: 3-5 Inch
Control Arm Specs:
- TJ: Pro LCG Long Arm Pair – Front Upper (# 1613801):
- Tube Diameter & Wall: 1.25 Inch x 0.25 Inch
- Factory Length: 15-1/8 Inch
- Min. Length: 22-1/2 Inch
- Max. Length: 24-7/8 Inch
- Bolt – Both: 7/16 Inch (12mm)
- Joint – Axle: NA
- Joint – Frame: 4116230
