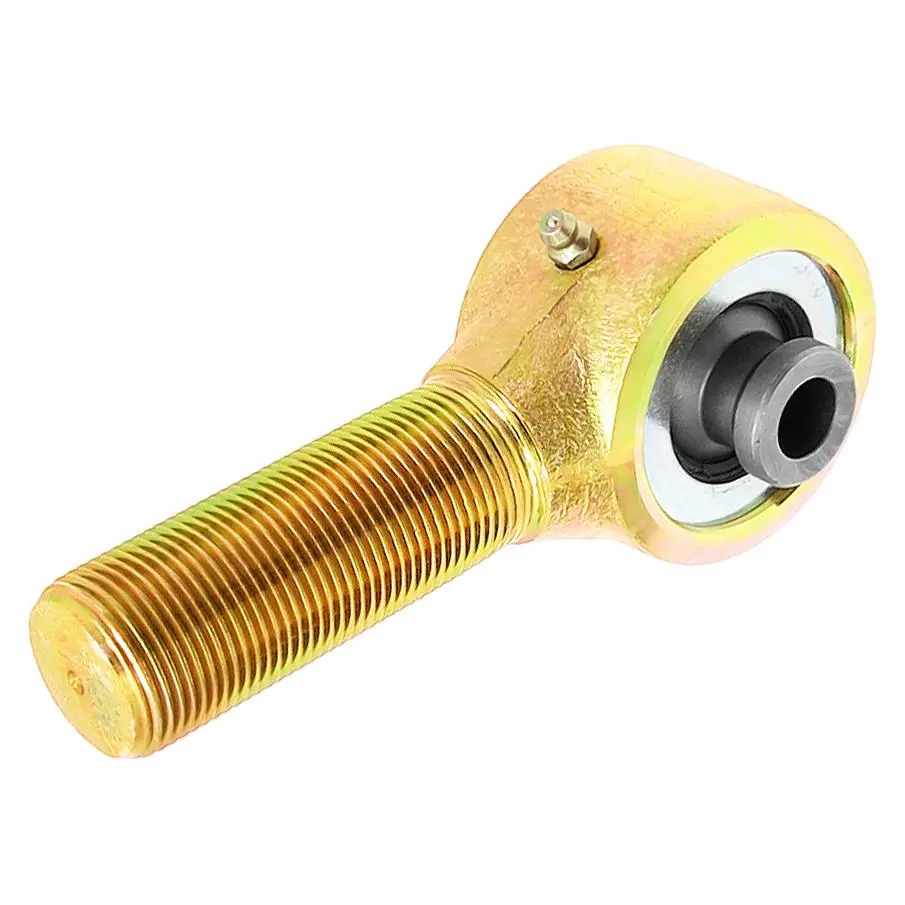

Heavy-Duty Johnny Joint Rod End engineered for 2021 and newer Ford Bronco rear frame applications — features a compact 2.5-inch narrow forged body, 1.25-inch-12 left-hand threaded shank, and a precision 74mm x 16mm spherical ball

Description

RockJock’s narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is designed to fit the frame side of the 2021 and up Bronco’s rear control arms and feature a narrow 2 1/2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 1 1/4 in.-12 left hand threads on the shank, and a 74mm mounting width ball with a 16mm thru bolt hole. Finished in gold zinc plating.
