Exterior Adjustable Track Bar Mount

Description

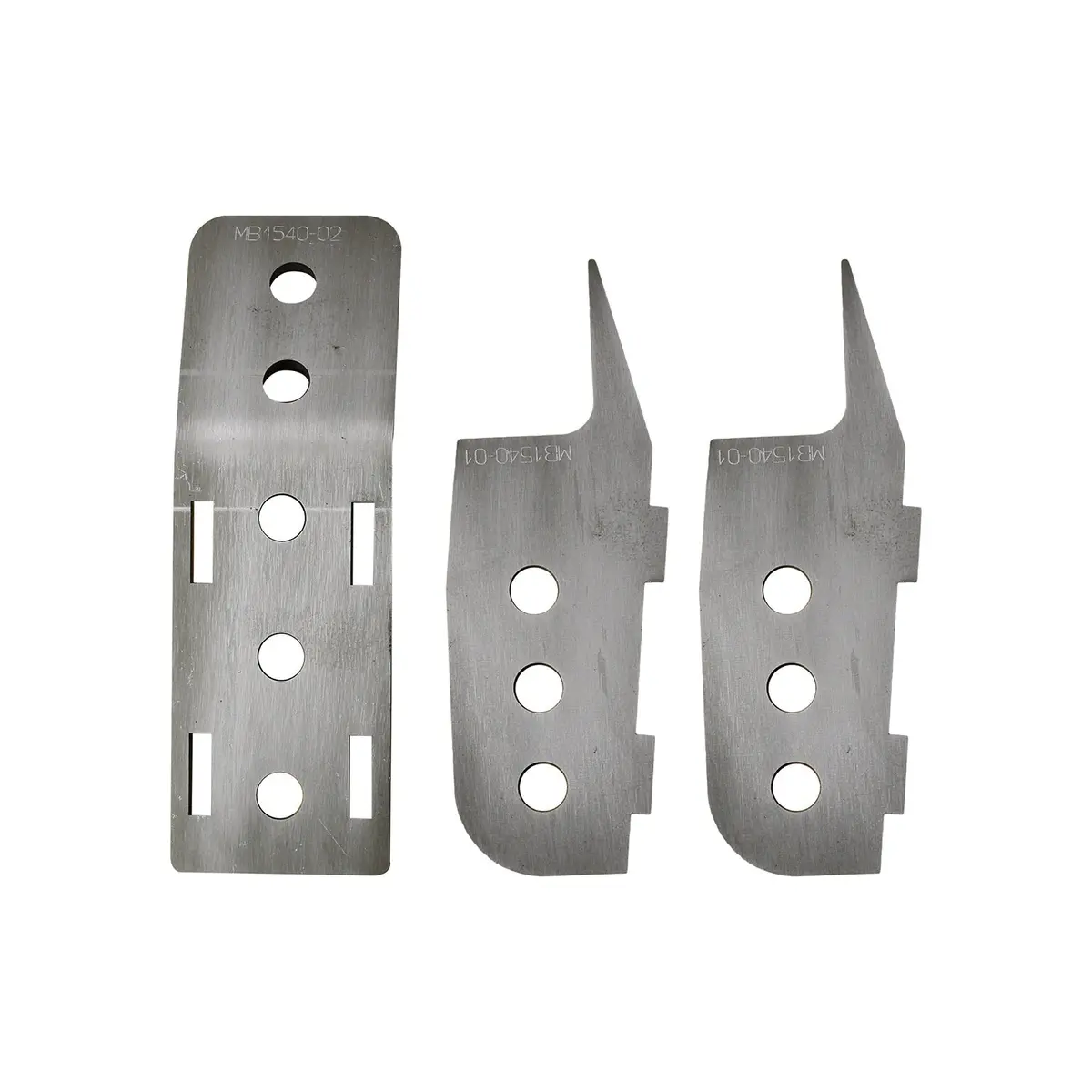

The Motobilt adjustable track bar bracket for outside the frame is made of 1/4 inch thick steel plates. This mount is laser cut and CNC formed in house at Motobilt HQ. There are 3 mounting holes that are 5/8 inch in diameter. This bracket was designed to fit on the outside of the frame but we also offer one for inside the frame too (PN MB1541).

Specifications

• Adjustable track bar bracket
• Consists of three (3) 1/4 inch thick steel plates
• Laser cut CNC formed
• Mounting width of the bracket is 1.75 inch
• 5/8 inch bolt holes.
• Sold as a kit
• Weight = 5lbs

Note

• This bracket was designed to fit on the outisde of the frame
• For an inside frame use PN MB1541

This part ships unwelded so welding will be required. Please note that the photos of the product assembled are for demonstration purposes only.
