Double-Triangulated 4-Link Suspension Kit with 1-1/4″ Chromoly Heim Joints

Description

Upgrade the suspension on your Rock Crawler or Trail Rig for maximum control and power translation with Barnes double triangulated 4 link suspension DIY kit with 1 1/4″ Chromoly Heims. Like all of our Barnes 4 link suspension kits, the double triangulated DIY kit with 1 1 1/4″ chromoly heims includes all the heavy duty parts you need to install a premium suspension system,

Read our 4 Link Suspension Install Tips.

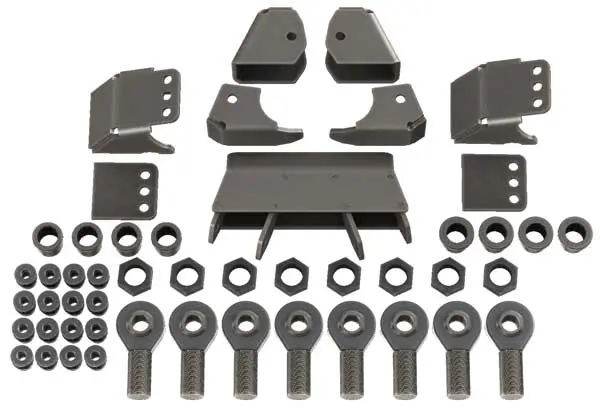

Including the following:

• 1 x Flush Mount Lower Triangulated 4 Link Bracket
• 1 x Axle Link Mount Pair 20 Degrees Standard
• 1 x Truss Link Mount Brackets
• 2 x Adjustable Inner Frame Link Mount 20 Degrees
• 4 x Heat Treated Chromoly Heims RH
• 4 x Heat Treated Chromoly Heims LH
• 16 x High Misalignment Spacer Zink-Plated Steel
• 4 Jam Nut RH
• 4 Jam Nut LH
• 4 Tube Insert RH
• 4 Tube Insert LH

We offer several other 4 link suspension kits. Choose from the following:

• Enduro Joint Four Link Suspension DIY Kit
• Four Link Suspension DIY Kit 1 1/4″ Chromoly Heims
• Lower Triangulated Four Link Suspension Kit 1 1/4″ Chromoly Heims
• Four Link Suspension DIY Kit 7/8″ Chromoly Heims

Four Link Suspension DIY Kit Related Products

Barnes 4 Link suspension kits come with everything you need to get the job done right the first time. If you’re interested in building your own system using Barnes fabrication parts, check out our Shock Brackets, Tabs, and Towers, Coil Spring Bucket Parts, 4 link DOM kit, and the Enduro Joints, Heims and Hardware section.
