Description

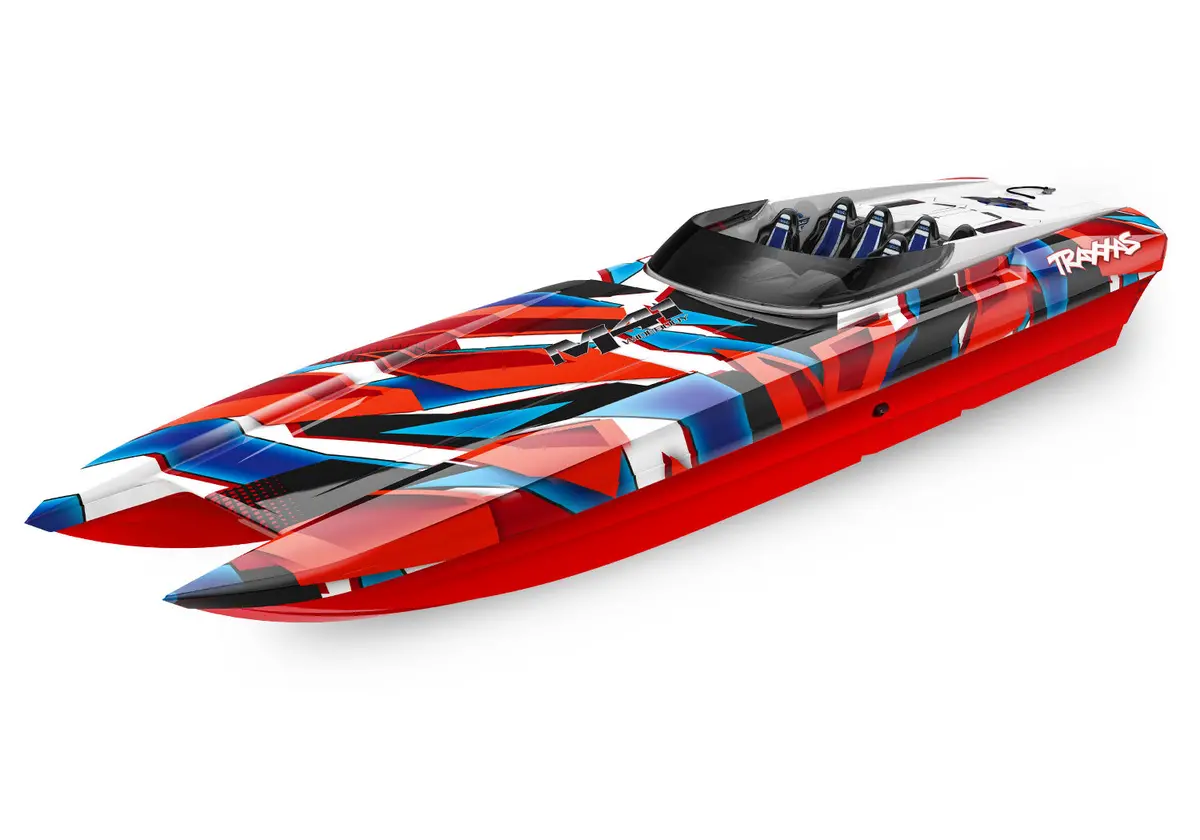

DCB M41 WIDEBODY, NO BATTERY OR CHARGER

Name:	M41 Catamaran
Type:	Boats
Speed:	50+ mph with two 3-cell LiPo batteries
Skill Level:	2
Scale:	1/10
Weight:	5.42 pounds (2.46 kg)
Length:	40.6 inches (1030 mm)
Width:	10.5 inches (267 mm)
Height:	5.95 inches (151 mm)
Drive System:	Direct drive, 0.150″ flex cable

Prop:	2-blade composite, 42 mm x 59 mm
Outdrive:	Adjustable aluminum
Hull Length:	39.5 inches (1003 mm)
Dead Rise Angle:	14.5 degrees
Length:	40.6 inches (1030 mm)
Height:	5.95 inches (151 mm)
Beam (Width):	10.5 inches (267 mm)
Hull Type:	Vacu-formed ABS, catamaran
Steering Servo:	2056 high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver

MOTOR SPECS

Name:	Velineon® 540XL
Motor Type:	Sensorless brushless
Weight:	13.62 ounces (386 g)
Length:	4.07 inches (103 mm) overall length, 3.25 inches (82 mm) can length
Diameter:	1.42 inches (36 mm)
Shaft Size:	5 mm
Connector Type:	Traxxas 5.5 mm bullet connectors

ESC SPECS

Name:	Velineon® VXL-6s
ESC Type:	Brushless
Case Size:	2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
Weight:	7.30 ounces (207 g)
Motor Connectors:	Traxxas 5.5 mm bullet connectors
Battery Connectors:	Traxxas High Current Connector

• 40″ DCB M41 Catamaran Hull
• Replica of Dave’s Custom Boats M41 Widebody
• Highly detailed cockpit
• Lightweight ABS hull
• Reinforced transom
• Quick-release power module integrates power system, waterproof electronics, and stuffing tube
• Pre-painted graphics
• Easy-access hatch with body clip lanyard
• Molded foam in the bow for extra security
• VXL-6s™ Marine Electronic Speed Control
• Innovative waterproof design
• Integrated water cooling
• Three drive profiles
• Sport Mode – forward / brake / reverse
• Race Mode – forward / brake
• Training Mode™ – 50% forward / brake / 50% reverse (patented)
• Built-in two-stage low-voltage detection for LiPo batteries
• Locked rotor protection
• NiMH battery packs: 12-18 cells (14.4 to 21.6 volts)
• LiPo battery packs: 4-6 cells (16.8 to 22.2 volts)

• Velineon^® 540XL Brushless Motor
• 1800 kV
• 5 mm output shaft
• Ultra high-temperature sintered neodymium magnets
• Unique high-flow silicone water cooling jacket
• Traxxas Stability Management^® (TSM)
• Improves straight line acceleration
• Never dulls throttle or slows the vehicle
• Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4 GHz Radio System
• 2-channel transmitter
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Adjustable steering and throttle sensitivity
• Adjustable steering and throttle endpoints
• Patented waterproof receiver box

• Integrated Battery Trays
• Integrated trays reinforce hull
• Hold a variety of 2-cell and 3-cell LiPo batteries
• Batteries can be positioned fore or aft for better balance
• Driveline
• Quick release flex cable
• Blue-anodized aluminum drive strut
• High performance prop
• Steering
• Waterproof digital 2056 servo
• Blue-anodized aluminum rudder
• Stainless steel trim tabs and turn fins
• Low-maintenance bushings
• Stainless Steel Hardware
• Requires Battery and Charger (Sold Separately)

MODEL 57046-4: DCB M41 Widebody 40″ Catamaran: Ready-To-Race^® with TQi™ 2.4 GHz radio system, Traxxas Stability Management^®, Velineon^® 540XL Brushless Motor, VXL-6s Marine ESC, and factory-applied graphics.

What’s In The Box:

• DCB M41 with VXL-6s Marine ESC and 1850 Kv motor
• Quick Start Guide
• TQi 2.4 GHz radio system
• Boat stand

What You’ll Need:

• Batteries

  M41 requires dual 2s or 3s LiPo batteries.

• Charger

  Traxxas EZ-Peak^® Dual 3s (2972) is recommended for easy and fast charging performance.

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter.
