Description

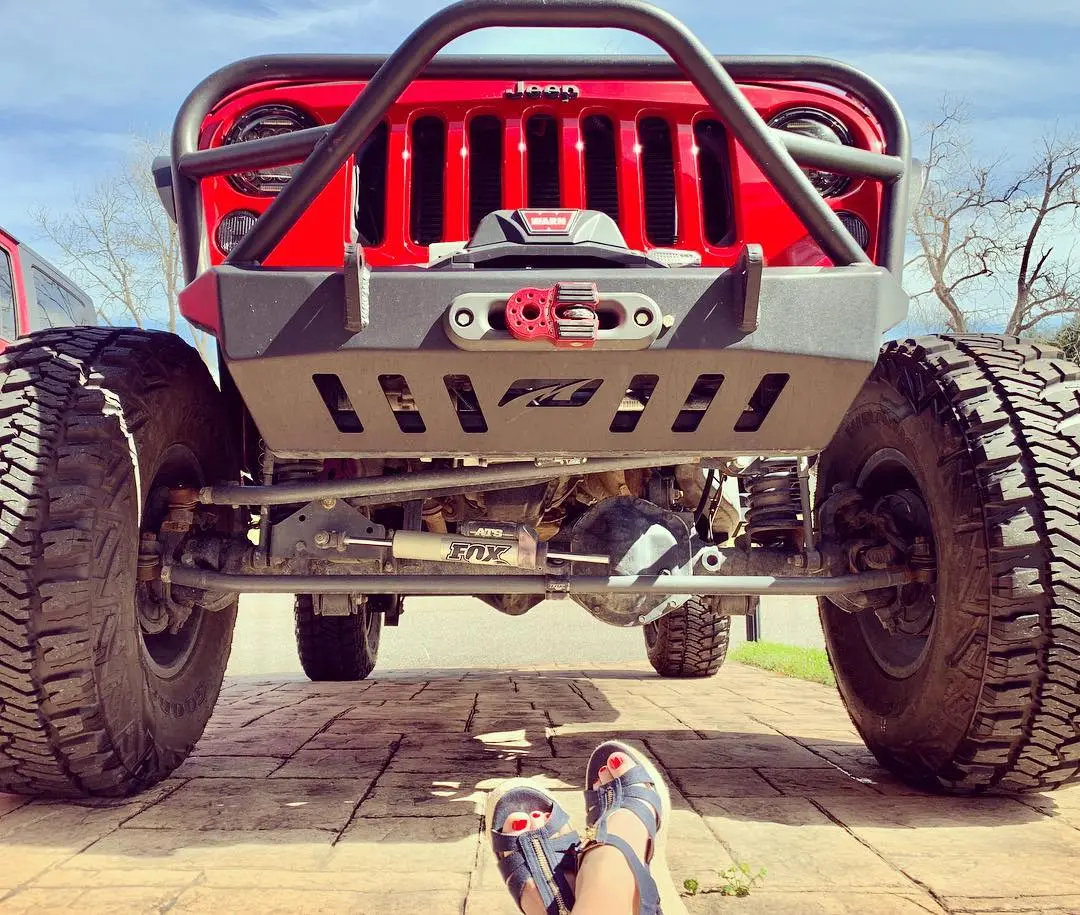

The Motobilt Jeep Wrangler JK Crusher recessed winch bumper with grill hoop and stinger will provide you the ultimate in protection and recovery. The bumper allows you to secure your winch down low in between the frame rails. The grill hoop, stinger, and connecting tubes are made out of 1.75 inch x .120 inch wall DOM tube. The high clearance design includes a built in skid plate also. The bumper is made from 3/16 inch thick steel plate that is laser cut at Motobilt HQ then cnc bent. The bumper uses 3/4 inch thick laser cut d-ring mounts that pass through the bumper and are welded both inside and out. This setup provides for superior strength.
Specifications
- Jeep Wrangler JK front Crusher recessed winch bumper with grill hoop and stinger
- Winch Ready
- Measures in at just 46.5 inch at its widest point
- 3/16 inch thick steel plate
- 3/4 inch thick laser cut d-ring mounts that pass through the bumper and are welded both inside and out
- Connecting tubes are made out of 1.75 inch x .120 inch wall DOM tube
- Includes all the necessary mounting hardware
- Sold as kit
- Weight = 95lbs (approx.)
Note:
- Will Not work with Teraflex S/T Dual rate front sway bar
- The outer edge of the crash bar will need to be trimmed to fit where the lower portion of the bumper mounts
- The 8 factory mounting holes may need to be open up to a 9/16″.
- Ships bare metal
- 2012 and newer models will need a vacuum relocation pump. PN MB2060
- Previous models of this bumper may ship with a fairlead spacer.
- Does NOT work with Super Winch EXP
Product Components
Instructions
Installation Instructions
