7/8-Inch Offset Heim Joint Steering Kit – Tubing Not Included

Description

This is our universal heavy duty crossover steering kit with our super strong 7/8 inch heat treated chromoly heims. The heim joints feature a 7/8″ threaded shank, and with the use of the misalignment spacers, 3/4″ hardware will be used to attach the joints to the knuckles and pitman arm.

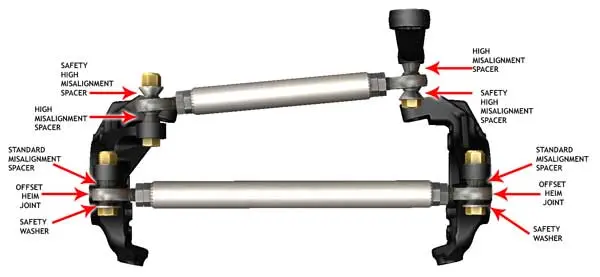

Kit Includes:

• One Right Hand and One Left Hand 7/8-14 x 7/8 Heim
• One Right Hand and One Left Hand 7/8-14 x 3/4 Offset Heim
• Four Hex Weld-in threaded tube inserts for 1 Inch ID tubing
• Two 3/4 Inch Misalignment Spacers
• Two 7/8-3/4 Inch High Misalignment Spacers
• Two 7/8-3/4 Inch Safety High Misalignment Spacers
• Two 3/4 Inch Safety Washers
• Four 7/8 Jam Nuts

This kit does not include tubing, if you need a kit with tubing you will find it here.
