3.5-Inch X-Factor Suspension System

Description

System Benefits:

Complete Bolt in System
Excellent Highway Ride and Handling
Greatly Improved Off-Road Ability
Adjustable Lower Control Arms Front and Rear
In Vehicle Adjustable Front and Rear Upper Arms
Triple Rate Coil Springs
RRD Spec Twin Tube Shocks
Pro Front Sway Bar Disconnects
Allows for up to 33 inch Tires (OEM Fenders)
Allows for up to 35 inch Tires (Flat Fenders)
Allows for up to 37 inch Tires (High Line Fenders)
Abuse Proof Lifetime Warranty on All Hard Parts
Upgradeable to any other Rock Krawler System

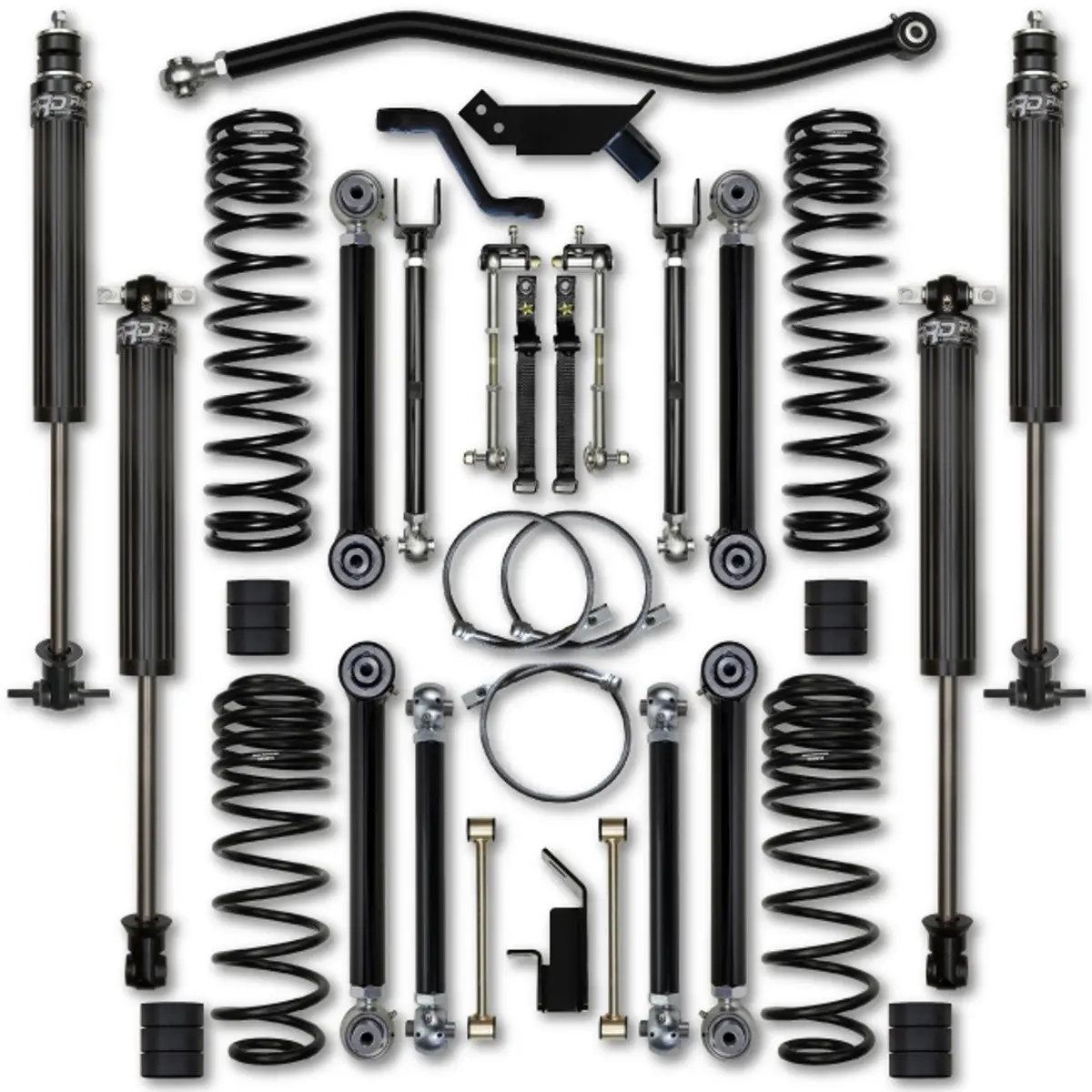

System Includes:
(4) Triple rate coil springs
(2) 9.8 inch Travel RRD Spec Twin Tube Front Shocks (Collapsed Length: 14.4 inch)
(2) 9.8 inch Travel RRD Spec Twin Tube Rear Shocks (Collapsed Length: 15 inch)
(1) Front high misalignment/adjustable track bar made from 1.25 inch solid alloy steel
(4) Adjustable lower control arms made from 1.625 inch solid alloy steel
(4) In vehicle adjustable front and rear upper control arms made from 1.25 inch solid alloy steel
(2) Pro adjustable front sway bar disconnects
(3) Long travel stainless steel brake lines
(2) Front sway bar link straps
(1) Front track bar relocation bracket
(1) Drop pitman arm
(1) Rear track bar relocation bracket made from 3/16 inch laser cut steel
* Includes all hardware and detailed instructions.
Notes:

Includes all hardware and detailed instructions
Typical wheel fitment for a 12.5 inch wide tire is a 15×8 with 3.75 inches of backspacing
RRD Spec’d Shocks
2.25 RRD Spec Front Shock
Part Number RRD02299

2.25 RRD Spec Rear Shock
Part Number RRD02300

Requires 3″ bump stops front and rear

RRD Spec Twin Tube Front Shock
Part Number RRD04007

RRD Spec Twin Tube Rear Shock
Part Number RRD04008

Requires 3″ bump stops front and rear

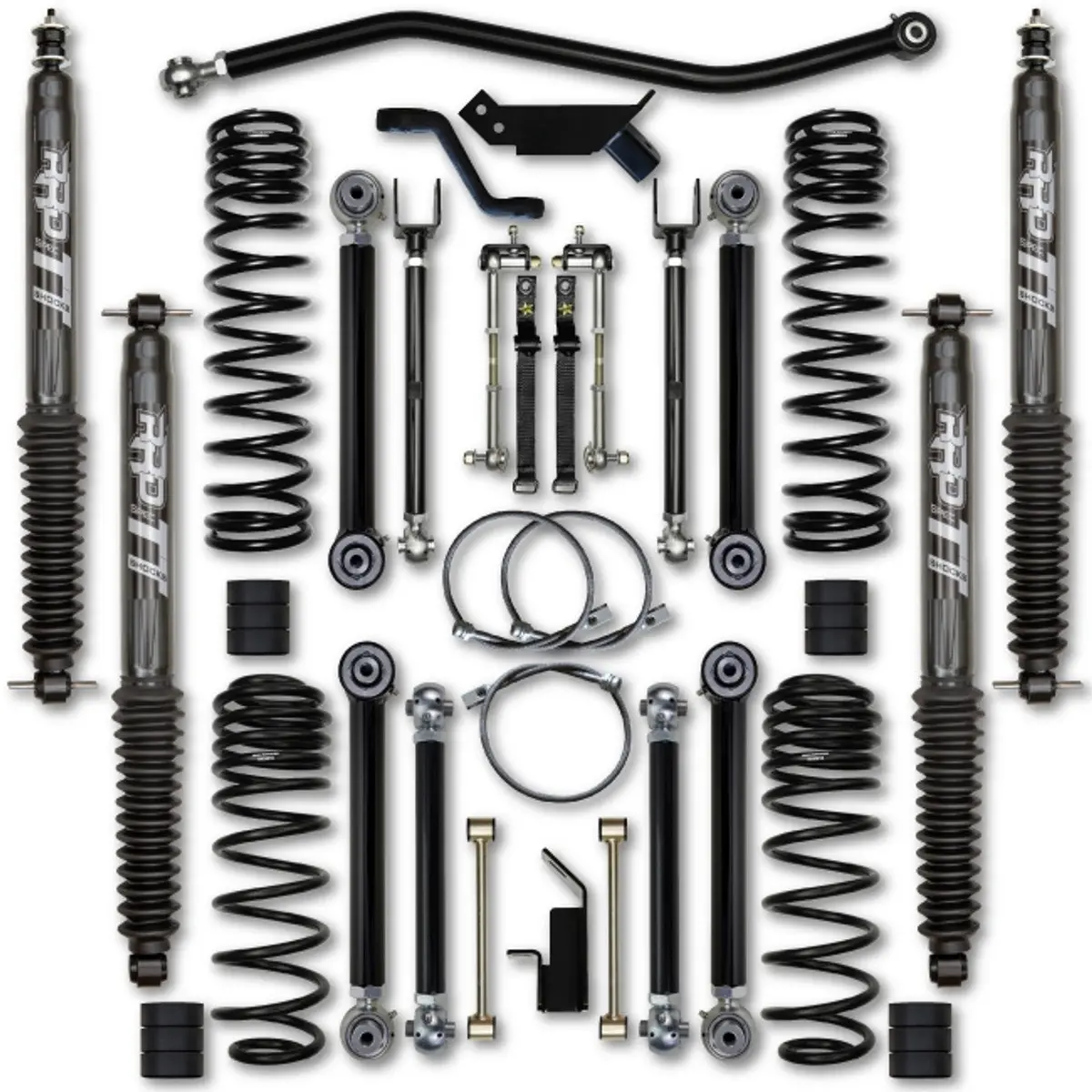

Bilstein 5100 shocks:
